Spacer for ground terminals　/ KRB

Material：Free-cut brass(C3604BD)Cadmium content of less than 75 ppm
Treatment：Gold plating (nickel substrate)
RoHS compliant product
■KRB-2000
Drawing
MOQ:50pcs
Screw diameter
(pitch)		 L Product code l Unit Price($)
M2
(0.4)		 5 KRB-2005 2.5 0.21
6 KRB-2006 3 0.21
7 KRB-2007 4 0.22
8 KRB-2008 5 0.22
9 KRB-2009 5 0.22
10 KRB-2010 5 0.23
11 KRB-2011 5 0.23
12 KRB-2012 5 0.23
13 KRB-2013 5 0.26
14 KRB-2014 5 0.26
15 KRB-2015 5 0.26
■KRB-2600
Drawing
MOQ:50pcs
Screw diameter
(pitch)		 L Product code l Unit Price($)
M2.6
(0.45)		 5 KRB-2605 2.5 0.22
6 KRB-2606 3 0.22
7 KRB-2607 4 0.22
8 KRB-2608 5.5 0.23
9 KRB-2609 6 0.23
10 KRB-2610 6 0.23
11 KRB-2611 6 0.26
12 KRB-2612 6 0.26
13 KRB-2613 6 0.26
14 KRB-2614 6 0.28
15 KRB-2615 6 0.28
■KRB-300　
Drawing
MOQ:50pcs
Screw diameter
(pitch)		 L Product code l Unit Price($)
M3
(0.5)		 5 KRB-305 2.5 0.22
6 KRB-306 3 0.22
7 KRB-307 4 0.22
8 KRB-308 5.5 0.23
9 KRB-309 7 0.23
10 KRB-310 7 0.23
11 KRB-311 7 0.26
12 KRB-312 7 0.26
13 KRB-313 7 0.26
14 KRB-314 7 0.28
15 KRB-315 7 0.28
■KRB-400　
Drawing
MOQ:50pcs
Screw diameter
(pitch)		 L Product code l Unit Price($)
M4
(0.7)		 6 KRB-406 3 0.27
7 KRB-407 4 0.27
8 KRB-408 5 0.27
9 KRB-409 7 0.30
10 KRB-410 7 0.30
11 KRB-411 7 0.30
12 KRB-412 7 0.30
13 KRB-413 7 0.33
14 KRB-414 7 0.33
15 KRB-415 7 0.33
■PC board mounting through hole, land diameter, and fastening torque
　 Through hole diameter Land diameter Fastening torque
KRB-2000
φ2.0 +0.1
-0
φ5or mor 1.4 k􃷅f·cm or less
KRB-2600
φ3.0 +0.1
-0
φ6or mor 3.8 k􃷅f·cm or less
kRB-300
φ3.0 +0.1
-0
φ6.5or mor 5.8 k􃷅f·cm or less
KRB-400
φ3.0 +0.1
-0
φ9.0or mor 6 k􃷅f·cm or less
Note:Numerical values above are reference values. We recommend conducting advance
confi rmation since numerical values may change due to state of solder during use.
Spacer type terminal for mounting on board with solder

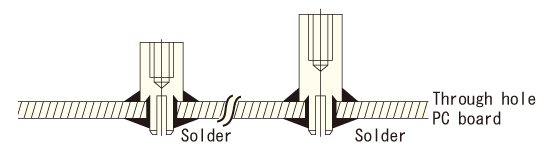

●For securing space on a board

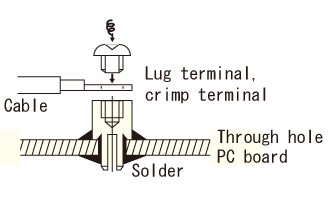

●When using for the connection of an electric power source
Pay attention to following points during use.
  • ・Use only boards with through holes. Not for use with single-sided boards.
  • ・Ensure that solder fl ows all the way to the component surface.

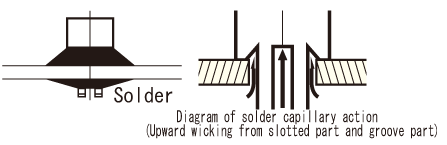

Note:Solder capillary action is smoother due to machining of separate
grooves on bottom of seat surface and slotted shape.
