Brass spacer( Hexagonal) for flat head screw fastening / KSB-BE(No plating)

Material：Free-cut brass(C3604BD)Cadmium content of less than 75 ppm
Treatment：Degreasing
RoHS compliant product
Use example
■KSB-2600BE　

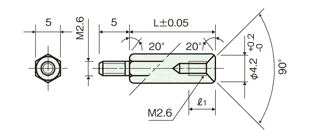

Drawing
MOQ:50pcs

Screw diameter
(pitch)

 L Product code l Unit Price($)
M2.6
(0.45)		 5 KSB-2605BE 2.5 0.23
6 KSB-2606BE 3.5 0.23
7 KSB-2607BE 4.5 0.23
8 KSB-2608BE 5 0.23
9 KSB-2609BE 5 0.23
10 KSB-2610BE 5 0.24
11 KSB-2611BE 5 0.28
12 KSB-2612BE 5 0.28
13 KSB-2613BE 5 0.30
14 KSB-2614BE 5 0.30
15 KSB-2615BE 5 0.30
16 KSB-2616BE 5 0.31
17 KSB-2617BE 5 0.32
18 KSB-2618BE 5 0.32
19 KSB-2619BE 5 0.32
20 KSB-2620BE 5 0.32
21 KSB-2621BE 5 0.33
22 KSB-2622BE 5 0.36
23 KSB-2623BE 5 0.36
24 KSB-2624BE 5 0.37
25 KSB-2625BE 5 0.39
26 KSB-2626BE 5 0.39
27 KSB-2627BE 5 0.40
28 KSB-2628BE 5 0.42
29 KSB-2629BE 5 0.42
30 KSB-2630BE 5 0.43
■KSB-300BE　

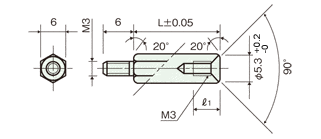

Drawing
MOQ:50pcs

Screw diameter
(pitch)

 L Product code l Unit Price($)
M3
(0.5)		 5 KSB-305BE 3.5 0.23
5.5 　KSB-305.5BE 3.5 0.23
6 KSB-306BE 4 0.23
6.5 　KSB-306.5BE 4 0.23
7 KSB-307BE 5 0.23
7.5 　KSB-307.5BE 5 0.23
8 KSB-308BE 6 0.23
8.5 　KSB-308.5BE 6 0.23
9 KSB-309BE 6 0.23
9.5 　KSB-309.5BE 6 0.23
10 KSB-310BE 6 0.26
11 KSB-311BE 6 0.26
12 KSB-312BE 6 0.26
12.5 　KSB-312.5BE 6 0.26
13 KSB-313BE 6 0.26
14 KSB-314BE 6 0.26
15 KSB-315BE 6 0.29
16 KSB-316BE 6 0.32
16.5 　KSB-316.5BE 6 0.32
17 KSB-317BE 6 0.32
17.5 　KSB-317.5BE 6 0.32
18 KSB-318BE 6 0.32
19 KSB-319BE 6 0.32
20 KSB-320BE 6 0.32
21 KSB-321BE 6 0.34
22 KSB-322BE 6 0.34
23 KSB-323BE 6 0.34
24 KSB-324BE 6 0.34
25 KSB-325BE 6 0.37
26 KSB-326BE 6 0.37
27 KSB-327BE 6 0.37
28 KSB-328BE 6 0.37
29 KSB-329BE 6 0.37
30 KSB-330BE 6 0.37
