Battery holder (For through-hole) / CDH-300

【Specifications】 Rated voltage：250VAC
Rated current：3A
Conductor resistance：30mΩ
Insulation resistance：1000MΩ
Use temperature range：－55℃ to ＋55℃
【Resin Part】 Material：66 nylon (glass content rate 30%)
Flammability：UL94V-0 (material)
【Contacts】 Material：Phosphor bronze
Treatment：Tin plating (nickel substrate)
RoHS compliant product
We recommend advance testing of CDH series items before actual use since
the properties of the resin casing may change under hot conditions.
■CDH-300

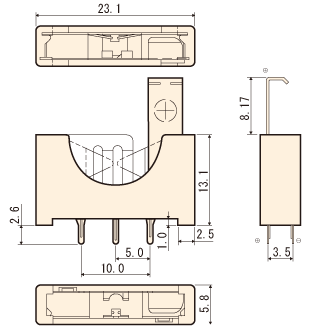

Drawing For through-hole

Drawing

MOQ:10pcs
Applicable batteries Product code Unit Price($)
CR2032 CDH-301 1.57
