PCT Pin header / PRL-40 Pin (φ) 2.54 mm pitch SMT right angle (1 row)
Connection side φ0.47mmPin/Connection side φ0.76mmPin

【Resin part】 Material:PCT(Glass encapsulated thermoplastic resin polyester)
  Color:Black
  Thermal deformation temperature: 1.80 MPa: 255℃
  Flammability:UL94V-0
【Pin】 Material:CuZn36Pb3(C36000)
  Treatment:Gold plating0.25μm
【Specifications】 Current capacity:3A
  Insulation resistance:10000MΩ min(500Vac)
  Contact resistance:10mΩ max
  Operating temperature range:-55℃- +125℃
  Withstand voltage:1000Vrms min
  RoHS compliant product

☆=Connection side φ0.47mmPin *=Connection side φ0.76mmPin

■PRL-410294-00(1 row)
Drawing Connection side φ0.47mmPin
MOQ:10pcs
H Number of pins Product code Unit Price($)
2.95 2 PRL-410294-02 0.51
3 PRL-410294-03 0.77
4 PRL-410294-04 1.02
5 PRL-410294-05 1.28
6 PRL-410294-06 1.52
7 PRL-410294-07 1.78
8 PRL-410294-08 2.03
9 PRL-410294-09 2.29
10 PRL-410294-10 2.53
20 PRL-410294-20 5.04
■PRL-410295-00(1 row)
Drawing Connection side φ0.76mmPin
MOQ:10pcs
H Number of pins Product code Unit Price($)
2.95 2 PRL-410295-02 0.48
3 PRL-410295-03 0.71
4 PRL-410295-04 0.94
5 PRL-410295-05 1.18
6 PRL-410295-06 1.41
7 PRL-410295-07 1.64
8 PRL-410295-08 1.88
9 PRL-410295-09 2.11
10 PRL-410295-10 2.34
20 PRL-410295-20 4.56

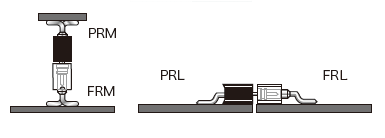

●Example of vertical mounting
Example of vertical mounting
●Example of horizontal mounting
Example of horizontal mounting
