PPS vertical mounting spacer / VAP-0000-B (Male screw, press-fit)

【Main body】 Material:Polyphenylene sulfide(PPS) Grade#1140A1
  Color:Brown
  Thermal deformation temperature:1.82Mpa:260℃
  UL standard:UL94V-0(Material)
【Male screw】 Material:Free-cut brass(C3604BD)Cadmium content of less than 75 ppm
  Treatment:Nickel plating(Ni)
  RoHS compliant product
■VAP-0000-B

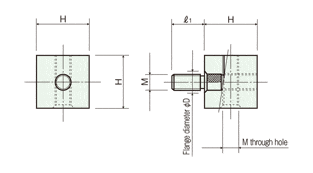

Drawing PPS vertical mounting spacer
Male screw, press-fit type
MOQ:50pcs
H M Product code φD l Unit Price($)
10 2.6 VAP-2610-B 3.5 5 0.84
3 VAP-3010-B 4 6 0.84
